Specifications :

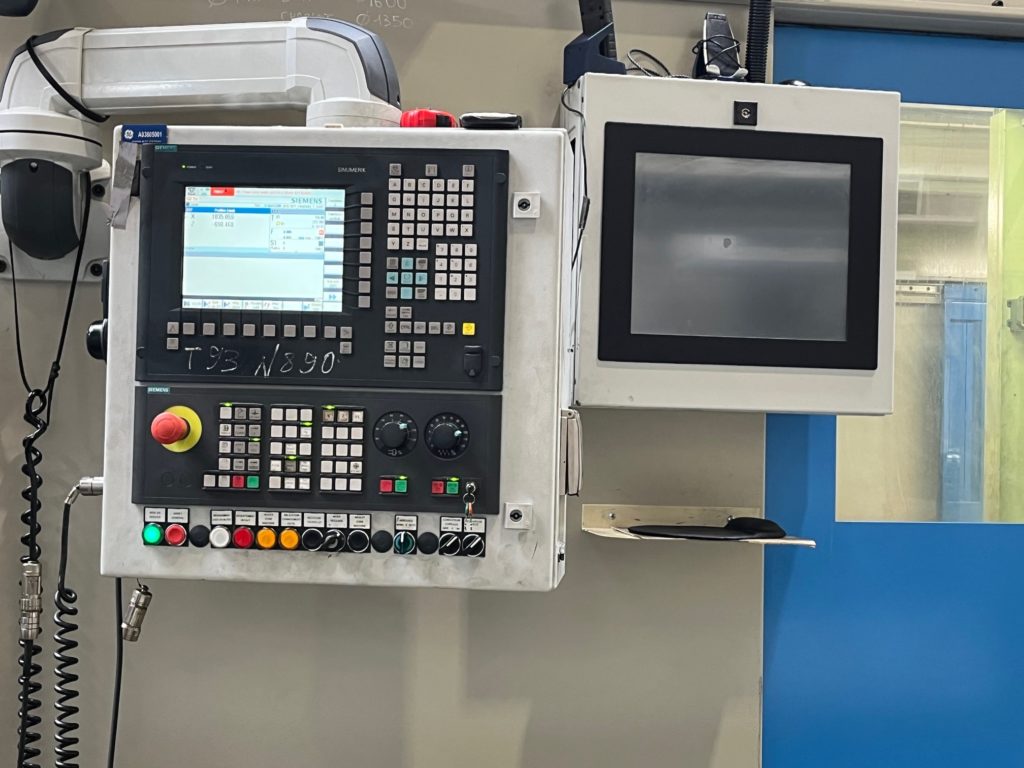

CNC :   SIEMENS 840D

Max swing over bed (3 shear Bed)   1 600 mm

Max swing over cross-slide    1 290 mm

Max turning length.    8 000 mm

Max  load between centers (unsupported)    20 000kg

Spindle speeds ( 4 mechanical ranges)   2- 710 RPM

Tailstock quill diameter  320mm

Tailstock quill stroke    250 mm

Main motor power  100 kW

Equipped with :

Full machine guarding to CE regulations with light guards (2014)

SAUTER 4 position automatic turret

Coolant

Full length swarf conveyor

1600 mm 4 jaw chuck

3 x Steady rests

Anti vibration boring bars

Grinding attachment for turret wheel dia. 400 mm

Larg tooling package
