CNC LATHE – GEMINIS – GHT9 – 1600 x 8000
Specifications : CNC : SIEMENS 840D Max swing over bed (3 shear Bed) 1 600 mm Max swing over cross-slide 1 290 mm Max turning length. 8 000 mm Max load between centers (unsupported) 20 000kg Spindle speeds ( 4 mechanical ranges) 2- 710 RPM Tailstock quill diameter 320mm Tailstock quill stroke 250 mm Main motor power 100 kW Equipped with : Full […]
3 Axis Vertical Machining Center-DMG – DMC 835 V
Equipped with : 20 ATC Swarf Conveyer 20 bar thru spindle coolant 10.000 RPM Spindle Specifications : CNC : SIEMENS 840D Table surface 1000 x 560 mm X stroke 835 mmY stroke 510 mmZ stroke 510 mm Max. table load 800 kg Spindle speeds 20 – 10 000 RPM Spindle power 13 KW Spindle taper SK 40Rapids 20 m/min Approx. dimensions 3700 x 2445 x […]
5 axes Vertical Machining Center – EMCO MECOF – UMILL 1500
Specifications : CNC : Heidenhain TNC640 HTCI Table surface 1400 x 1200 mm X Stroke 1500 mmY Stroke 1500 mmZ Stroke 1100 mm B Axis -/+185° C Axis 360.000 positions Max table load 4500 kg Spindle speeds 1 – 12 000 RPM Spindle power (electro-spindle) 58 kW Spindle taper HSK100-ARapids 60 m/minApprox. overall dimensions 7 200 x 6 200 […]
Teach in CNC LATHE – GEMINIS – GHT5 1000 x 4000
Specifications : CNC : FAGOR 8055 Centre distance : 4 000 mm Swing over bed : 1 000 mm Swing over cross-slide : 680 mm Bed width : 550 mm Max load : 4800 kg Spindle bore : 104 mm Spindle speeds 4 ranges : 0 to 500 RPM Main motor power : 30 kW Tailstock quill diameter […]
4 AXES CNC TALE TYPE HORIZONTAL BORER – TOS – WHN 13.8 CNC
Specifications : CNC : HEIDENHAIN TNC 426 Travel : X longitudinal (table) 3 500 mm Y vertical (saddle) 2 500 mm Z transversal (ram) 1 250 mm W transversal (spindle) 800 mm Spindle diameter 130 mm Spindle speeds max. 2 500 RPM Spindle power 37 kW Spindle taper ISO 50 Table dimensions 2 500 x 1 800 mm B Axis 360 000 positions Equipped with : New […]
4 AXES CNC TABLE TYPE HORIZONTAL BORER – TOS – WHN 110 CNC – !!! SOLD !!!
Specifications : CNC : HEIDENHAIN TNC 430 Travel : X longitudinal (table) 2 000 mm Y vertical (saddle) 1 600 mm Z transversal (ram) 1 250 mm W transversal (spindle) 500 mm Spindle diameter 110 mm Spindle speeds max. 2 500 RPM Spindle power 37 kW Feeds Range 5 m/min Rapids 10 m/min Spindle taper ISO 50 Table dimensions 1 600 x 1 […]

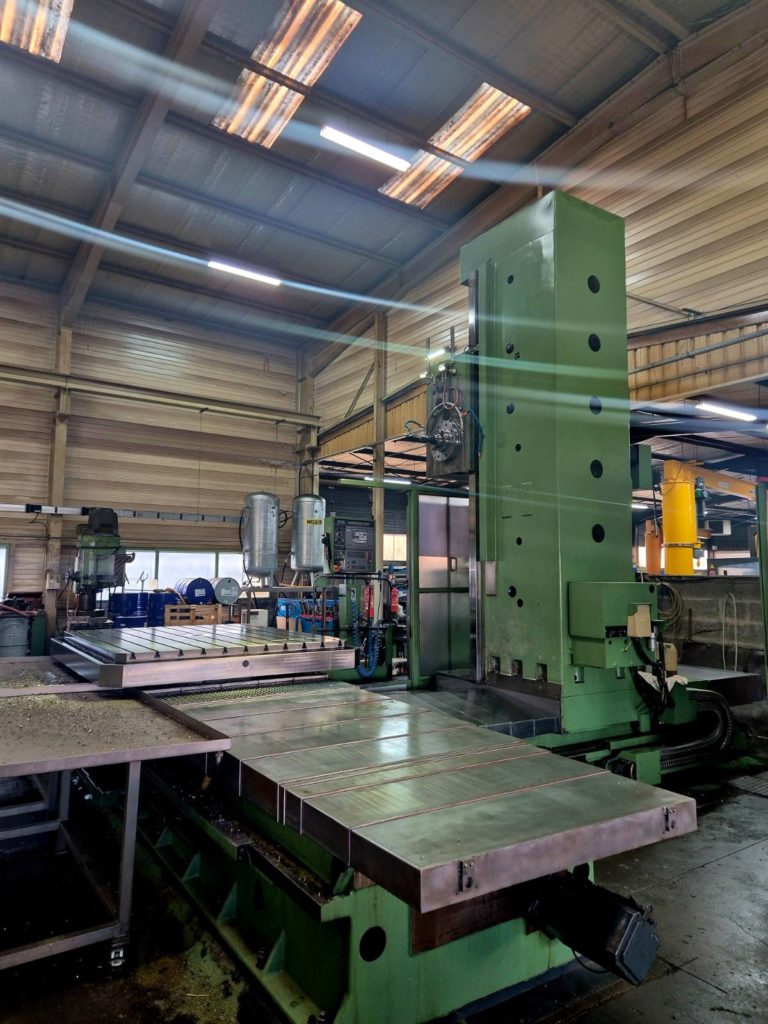

4 AXES CNC TALE TYPE HORIZONTAL BORER – TOS – WHN 13 CNC
Specifications : CNC : HEIDENHAIN iTNC 530 Travel : X longitudinal (table) 3 500 mm Y vertical (saddle) 2 500 mm Z transversal (ram) 1 250 mm W transversal (spindle) 800 mm Spindle diameter 130 mm Spindle speeds max. 3 000 RPM Spindle power 37 kW Feeds Range 5 m/min Rapids 10 m/min Spindle taper ISO 50 Table dimensions 1 800 x 2 500 […]
CNC VERTICAL BORER – YOUJI – YV3000 ATC
Specifications : CNC : SIEMENS 840D Turning capacity : Max swing diameter : 3600 mm Max turn diameter : 3400 mm Max Turn height. 1800 mm Chuck : Diameter 3000 mm Max Load. 20 T Chuck Speed (2 ranges) 2 – 120 RPM Main motor power 75 kW Ram on cross-rail : Vertical Ram stroke 1500 mm Ram section 300 x 300 mm Cross-rail : […]

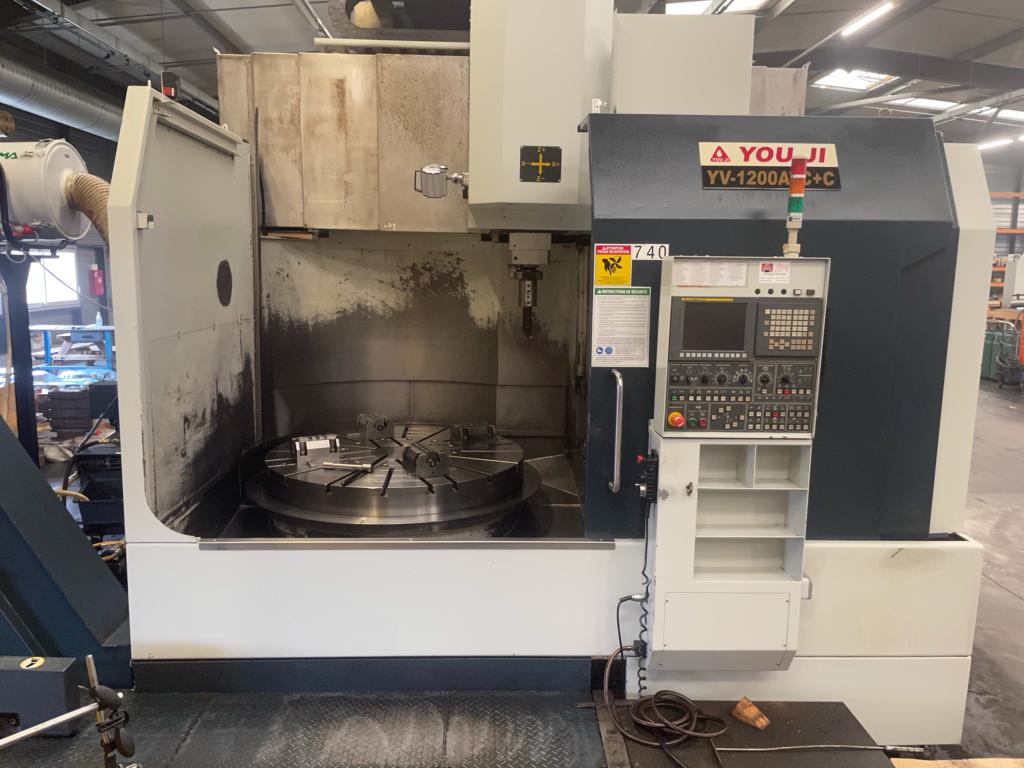

CNC VERTICAL BORER – 3 axes – YOUJI – YV1200 ATC+C
Specifications : CNC : FANUC 18iTB Turning capacity : Max swing diameter : 1600 mm Max turn diameter : 1350 mm Max Turn height. 1200 mm Vertical ram travel : 900 mm Chuck : Diameter 1400 mm Max Load. 5 T Chuck Speed (2 ranges) 1 – 350 RPM Main motor power 37/45 kW Foot-print + height 5 x 4.3 x 5.4 m Equipped […]
3 axes Vertical Machining Center – HAAS – VF3
Specifications : CNC : HAAS Table surface 1219 x 457 mm X axis travel 1016 mmY axis travel 508 mmZ axis travel 635 mm Max. table load 1588 kg Spindle speeds 1 – 10 000 RPM Main motor power 22.4 KW Spindle taper ISO 40Rapids 25 m/minApprox. dimensions 2 997 x 2 794 x H 3 048 mmApprox. weight 5600 kg Equipped […]
