TEACH IN CNC LATHE – HWACHEON – MEGA 100
Specifications : CNC : FANUC 0i-TD avec Manual Guide Centre distance : 5 000 mm Swing over bed : 1 000 mm Swing over cross-slide : 720 mm Bed width : 700 mm Spindle bore : 155 mm Spindle speed 3 step gearbox : 40 to 750 RPM Main motor power : 22 kW Tailstock quill diameter : […]
CNC LATHE – HAAS SL-30TBHE
Specifications : CNC : HAAS Swing over bed : 762 mm Swing over cross slide : 368 mm Distance between centres: 1000 mm Turret : VDI 40 Spindle bore : 103 mm Spindle motor : 30 kW Spindle speed max : 3400 rpm Dimensions machine : 4100 x 1950 x 1880 mm Weight : 7,5 to Equipped with : Swarf conveyor VDI-tooling High […]
3 Axis Vertical Machining Center – HURCO VM3
Options: CNC : HURCO MAX 20 ATC Rigid tapping Specifications : Table surface 1 321 x 457 mm X stroke 1 270 mmY stroke 457 mmZ stroke 457 mm Max. table load 545 kg Spindle speed 1 – 8 000 RPM Spindle motor power 20 HP Spindle taper BT 40Rapid traverse 20 m/minMachine dimensions approx. 2830 x 2 770 x H 2 […]
CNC RAM TYPE FLOOR BORING / MILLING – FPT – SPIRIT 250
Specifications : Travel X Longitudinal (column) 6 000 mm Y Vertical (saddle) 5 000 mm Z Transversal (spindle) 900 mm W Transversal (ram) 1500 mm B Rotation table 360.000 positions V Infeed Table 1500 mm Spindle diameter 160 mm Spindle taper SA 50 BIG + Spindle motor power 71 kW Spindle speeds 1 to 3000 RPM Milling feeds 5000 mm/mn Rapid traverse 25000 […]
CNC VERTICAL BORER WITH HIGH PRESSURE COOLANT – BERTHIEZ TFM 160
CNC NUM POWER 1040 Equipped with : High pressure coolant system from 70 to 350 bar Sandvik CAPTO C6 tool holders Special water tight way covers 12 ATC Tool probe Specifications : Chuck Ø 1 600 mm Max turn Ø 1 880 mm Max turn height 1 600 mm Chuck height from floor 696 mm Vertical […]
3 axis Vertical Machining Center HAAS VM 6
Options: 30+1 ATC Swarf screw CNC : HAAS Specifications : Table surface 1670 x 813 mm X axis travel 1620 mmY axis travel 813 mmZ axis travel 762 mm Max. table load 1800 kg Spindle speeds 1 – 12 000 RPM Main motor power 23 KW Spindle taper BT 40Rapids 15 m/minApprox. dimensions 4 950 x 2 590 x H […]

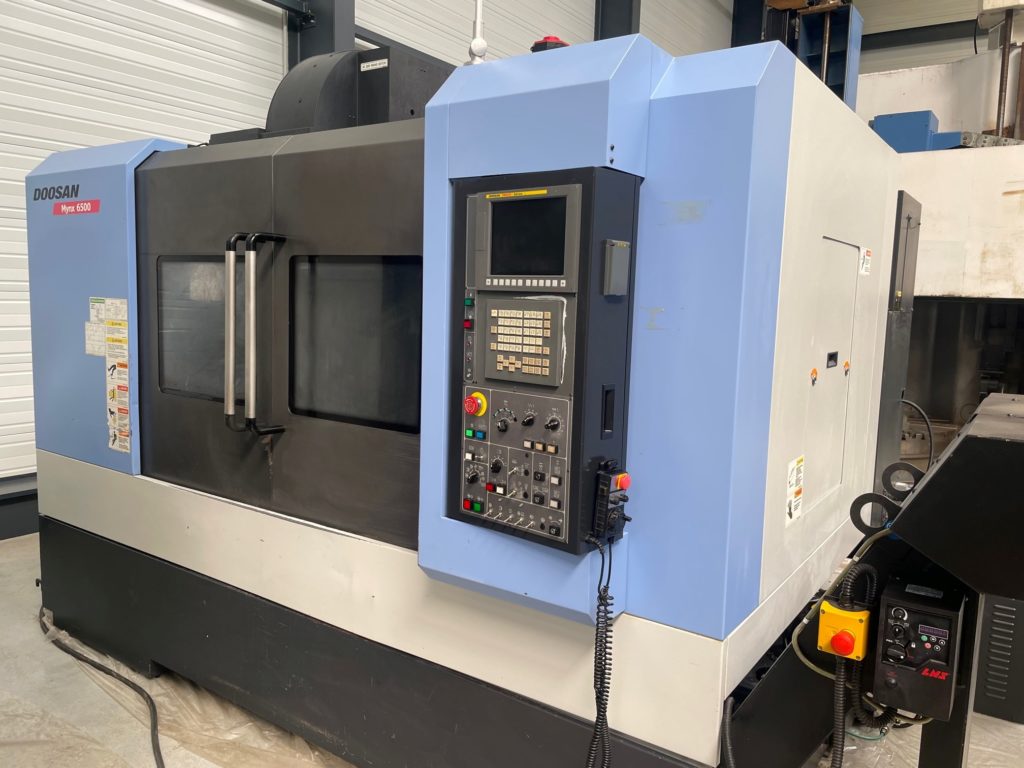

3 Axis Vertical Machining Center DOOSAN DNM 6500
Options: CNC : FANUC i series + Manual guide 30 ATC 20 Bar thru spindle coolant Swarf Conveyor 4th axis ready Specifications : Table surface 1400 x 670 mm X axis travel 1270 mmY axis travel 670 mmZ axis travel 625 mm Max. table load 1000 kg Spindle speeds 1 – 8 000 RPM Main motor power 15 KW […]
3 Axis Vertical Machining Center Johnford DMC 4100 H
Options: CNC : FANUC OiMC + manual guide + 8.4” LCD 24 ATC BT 50 Swarf Conveyor Handwheel Through spindle coolant 20 bar Specifications : Travel X/Y/Z : 4200 x 1300 x 800 mm Table size : 4000 x 1100 mm Distance between columns : 1300 mm Spindle to table min / max : 150 – 950 mm Max table load […]
3 AXIS CNC VERTICAL BORER – KONRAD SEIDLER – VERTIMAXX 2000
Specifications : Chuck diameter 1 800 mm Max. turning diameter 130 mm Max. turning height 1 400 mm Height under cross rail 1 500 mm Chuck load 10 T Vertical stroke of ram 1 000 mm Chuck speed 140 RPM (high torque gear box) Main motor power 60 kW Motor power of milling spindle 15 / 22 kW Voltage 400 V / 50 […]
Universal CNC Milling Machine – ANAYAK – 1080
Specifications : Table 1 385 x 305 mm Axes Stroke X = 800 mm, Y = 450 mm, Z = 400 mm Quill Travel 200 mm Spindle Taper ISO 40 Spindle speeds 1 to 3 000 RPM Rapids 6000 mm/mn Weight 2 500 kg Powered tool Clamping Powered Knee Equipped with : CNC : HEIDENHAIN TNC 155
